L8 Mini Handheld Wireless Tour Guide System Transmitter And Receiver For Exhibition
Using graphic:
Parameters:
| Name | Value |
| Working frequency: | 400MHz-470MHz,Narrow band (can be customized broadband!); |
| Channel Quantities: | 64:64 teams in the same place,no interference; |
| Channel spacing: | 323KHz; |
| Transmitter power: | 20dBm; |
| Receiving sensitivity: | -115dBm(typical); |
| Working voltage: | 2.4-3.3VDC,AAA battery; |
| Input and Output: | Input(transmitter):3.5mm microphone；
Output(receiver):3.5mm earphone |
| Oscillator: | PLL; |
| Second harmonic: | >40dbc; |
| Frequency response: | 300Hz-3KHz; |
| Signal to Noise Ratio: | 80dB(typical); |
| Working current: | Transmitter:≤110mA(20dBm);
Receiver:≤35mA; |
| distance: | >=150 meter; |
| Dimensions: | Length70mm×Width48mm×Height18mm; |
| Weight: | 35g(without battery) |
Descriptions:
TuMan L8 AAA battery tour guide system is detrusion by HUMANTEK CO.,LTD,The system adopts the international advanced wireless amplification technology,to realize the function of intelligent voice explain.The system related equipment light fashionable appearance,convenient to carry.can be for the government officials and VIP customer visits,conferences. More suitable for large companies,museums,theme parks,scenic spots and historical sites,such as a tour by boat tour guide use;

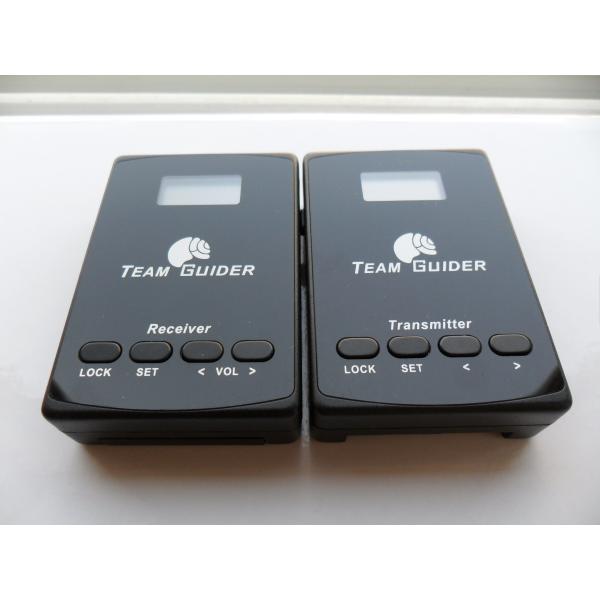

The dvice contains Transmitter and Receiver.
TuMan L8 product feature:
1. Dual channel 64 channels;
2. Transmission distance:open field >=150m;
3. The through wall effect is good:through concrete wall,brick wall penetration effect;
4. Channel spacing is 323 kHz:Adjacent channel without interference;
Application:
* Business or Civic Meetings
* Education - Training
* Employee Training
* Entertainment or Performing Arts, Enhanced personalized audio
* Athletic Stadiums or Arenas
* Auditoriums
* Government
* Hospitality or Tourism
* Houses of Worship – Mosque, Church, Cathedral, Synagogue
* Manufacturing – Factory Tour
* International Conventions - Interpretation
* Law Enforcement – Court of Law
* Medical or Dental Facilities
* Tour Groups
Battery Sample:
After Service:
1.All products purchased in our company are guaranteed to keep in good repair for one year. If quality problems happen in guarantee period, our company will maintain for free.
2.Additionally, our company provides technical support and fittings for life. After-sales service isn't restricted by time and we will assign technical personnel to solve your problems immediately after receiving telephone and hear feedback idea of users and deal with them in time.
3.If you are caught in some problems when using our products, welcome to contact us at any time.
user quality problems arise in the normal use condition, in the warranty period please fast contact with our company, to facilitate the users receive timely maintenance and replacement.
